What Is AAC Block Manufacturing Machinery?
AAC manufacturing machinery refers to the complete production system used to convert raw materials into finished AAC blocks, including preparation, mixing, forming, cutting, and autoclaving.
It is not a single line item. It is a process chain.
If one section is under-designed, the whole plant performance will be limited by itโno matter how strong the other machines are.
Capabilities ofโ AAC bloklarini ishlab chiqarish mashinalari
Mini/small AAC Production Line
Capacity: 30000-100000 m3/year
Avtoklav: 1-3 sets
Zavod: about 4000-10000m2
Types: semi-automatic/ fully automatic
Features: low initial investment, high flexibility.
Suitable for: Start-ups or enterprises with limited investment and small market demand.โ
Medium- Scale AAC Production Line
Capacity: 100000-200000 m3/year
Avtoklav: 4-8 sets
Zavod: about 10000-20000m2
Type: fully automatic
Features: stable production capacity, controllable costs, and flexibility and large-scale production.
Suitable for: Enterprises with certain market share and stable demand.

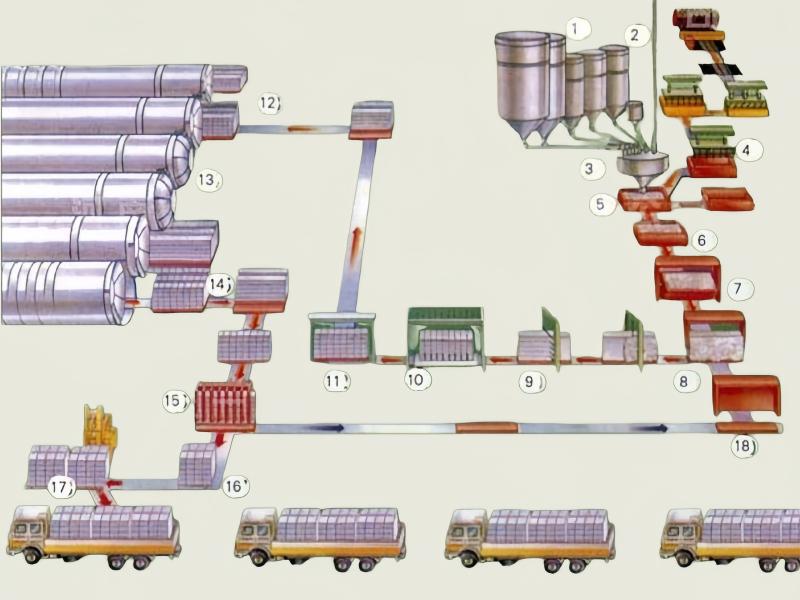

Full Equipment List in AAC Production
1. Raw Material Handling Equipment
Crusher: Crushes raw materials such as sand and lime to the specified particle size. Jaw crushers are used for hard materials, and impact crushers are used for fine crushing.
Screener: Uses vibratory screening to remove impurities and make sure raw material particles are uniform in size.
Storage Silo: Stores pre-treated raw materials. It has a level meter and dust removal device to keep production running continuously and meet environmental protection requirements.
Weighing Scale: Belt or spiral scales accurately measure raw material quantities to minimize formulation errors.
2. Mixing and Foaming Equipment
Forced Mixer: Mixes solid raw materials and water at high speed to form a uniform slurry, laying the foundation for foaming.
Aluminum Powder Mixing Tank: Mixes aluminum powder suspension at low speed to prevent sedimentation and ensure uniform dispersion.
Foaming System: Aluminum powder suspension is injected in proportion to react with the slurry to generate bubbles, which are then linked to the mixer for automated control.
3. Casting and Forming Equipment
Molds: Custom-made high-strength steel with a special surface treatment, adjustable in size to accommodate different product specifications.
Casting Machines: Precisely control the slurry injection volume, and some are equipped with automatic travel to prevent material shortages or overflow.
Curing Chamber: A constant temperature and humidity environment ensures slurry aeration and initial setting, resulting in a uniform porous structure.
4. Cutting Equipment
Turning Table: Driven by hydraulics, it rotates molds and blanks smoothlyโthis makes demolding and cutting easier.
Wire Saw: Uses multiple sets of high-strength steel wires for high-speed cutting. A CNC system ensures cutting accuracy down to the millimeter. For large wire saw equipment, it can do continuous cutting at multiple stations.
5. Autoclave Curing Equipment
Autoclaves: Large pressure vessels cure blanks at temperatures of 180โ200ยฐC and pressures of 10โ12 bar, forming high-strength calcium silicate hydrates. Equipped with safety interlocks.
6. Auxiliary Equipment
Steam Boilers: Supply stable steam for autoclaves and curing chambers, with various heating options available.
Air compressor: Provides compressed air for pneumatic equipment, ensuring valves, clamps, and other devices work properly.
Conveyor belt system: Transports materials through the entire process. Uses belt or chain conveyors (chosen based on material needs) for automated, continuous movement.
Nazorat tizimi: PLC or DCS systems monitor and adjust production parameters in real time. They record data for management and traceability, and help resolve issues promptly.
Key Machinery Explained (Cutting / Autoclave)
If we simplify AAC production into two โcritical control pointsโ, it is always:
1. Cutting System โ determines dimensional accuracy
Cutting is where most quality problems appear.
| Item | Impact |
|---|---|
| Cutting accuracy | Block size consistency |
| Wire tension stability | Surface smoothness |
| Cutting speed | Plant capacity limit |
Even a small deviation in cutting precision will lead to:
- Increased mortar usage on site
- Higher rejection rate
- Customer complaints in construction use
That is why we usually spend more design time here than anywhere else.
2. Autoclave System โ determines strength and stability
Autoclaving is not just โcuring with steamโ.
It defines:
- Final compressive strength
- Shrinkage behavior
- Long-term stability
If steam distribution is uneven, the plant will never achieve consistent product quality, even if everything upstream is correct.
Machinery Configuration for Different Plant Sizes
We do not recommend one fixed configuration for all projects. Capacity changes everything.
| Capacity | Configuration Level | Typical Market |
|---|---|---|
| 100,000 mยณ/year | Basic semi-auto system | Emerging markets |
| 150,000 mยณ/year | Standard full line | Growing demand |
| 200,000 mยณ/year | High stability automation | Stable markets |
| 300,000 mยณ/year | Fully integrated EPC system | Large-scale infrastructure |
One mistake we often see: clients buying โover-configuredโ equipment for small markets. That usually leads to idle capacity and cash flow pressure.
Machinery Cost & ROI Considerations
Cost is not just about equipment price. In AAC projects, we always look at output stability vs investment ratio.
Example comparison:
| Item | Low Configuration | Optimized Configuration |
|---|---|---|
| Investment | Lower upfront | Higher upfront |
| Labor dependency | High | Low |
| Defect rate | Higher | Lower |
| Payback period | Unstable | Predictable (2โ3 years typical) |
A cheaper plant is not always cheaper in operation.
In many cases, the real cost appears after commissioningโnot during purchase.
How to Evaluate an AAC Machinery Supplier
When clients compare suppliers, we usually tell them not to focus on price first.
Instead, evaluate these three points:
- Whether the supplier understands full process integration
- Whether similar plants have been successfully commissioned
- Whether layout and capacity are designed, not just quoted
If a supplier only sends a machine list without process design, that usually leads to integration issues later.
Real Client Decision Cases
The following two projects are quite different in scale, but they show how capacity, market positioning, and technical choices affect the outcome.
In this project, the client initially compared multiple suppliers based only on price.
The lowest offer excluded several key systems, especially in:
- Material handling automation
- Cutting system stability design
After technical review, the client selected a mid-range configuration instead of the cheapest option.
Result after commissioning:
- Stable production within the first month
- Lower defect rate than expected
- Faster ramp-up to design capacity
The key decision factor was not priceโit was system completeness.
The Italy project had a different priority: product consistency. Here, the client was less sensitive to initial cost and more focused on:
- Dimensional precision
- Energy efficiency
- Long-term maintenance stability
We adjusted the configuration accordingly:
- Higher-precision cutting system
- Optimized autoclave heat distribution
- Enhanced control automation system
Result:
- Very stable block quality
- Low maintenance frequency
- Strong acceptance in local construction market
In this case, investing slightly more upfront reduced long-term operational issues significantly.
FAQs
Q1: Is AAC machinery standardized?
No. It is always adjusted based on capacity, raw materials, and layout conditions.
Q2: What is the most important machine in AAC production?
Cutting system and autoclave system have the highest impact on product quality.
Q3: Can I start with partial equipment and expand later?
Yes, but expansion planning must be included in initial layout design.
Q4: How long does installation take?
Typically 6โ10 months depending on plant size and local conditions.
Q5: Do you provide installation support?
Yes, commissioning support is essential for stable production start-up.
Get a Customized Equipment List & Quotation
If you are evaluating an AAC project, the worst approach is to ask for a standard price list.
What actually works better is to define your project conditions first:
- Target capacity
- Raw material type (fly ash or sand)
- Market location
- Budget range
Based on this, we can provide:
- Full equipment configuration
- Layout suggestion
- Investment estimate
- ROI reference model
This is closer to how we design real projects, not catalog-based sales.
